Fabrication Catalog

Certified industrial electrical equipment

Precision-engineered distribution transformers, compact substations, HT and LT power panels, and high-volume modular conduit boxes manufactured in Ropar under strict IS standards.

High Voltage

Heavy electrical apparatus

Oil-Immersed Transformers

Step-down and step-up distribution transformers rated from 100kVA to 5MVA with electrolytic grade copper windings, low-loss CRGO silicon steel laminations, and corrugated radiator tanks built for extreme thermal cycles.

Dry-Type Cast Resin Units

Moisture-proof, flame-retardant dry transformers suited for indoor commercial basements and sensitive process plants requiring zero oil contamination risk.

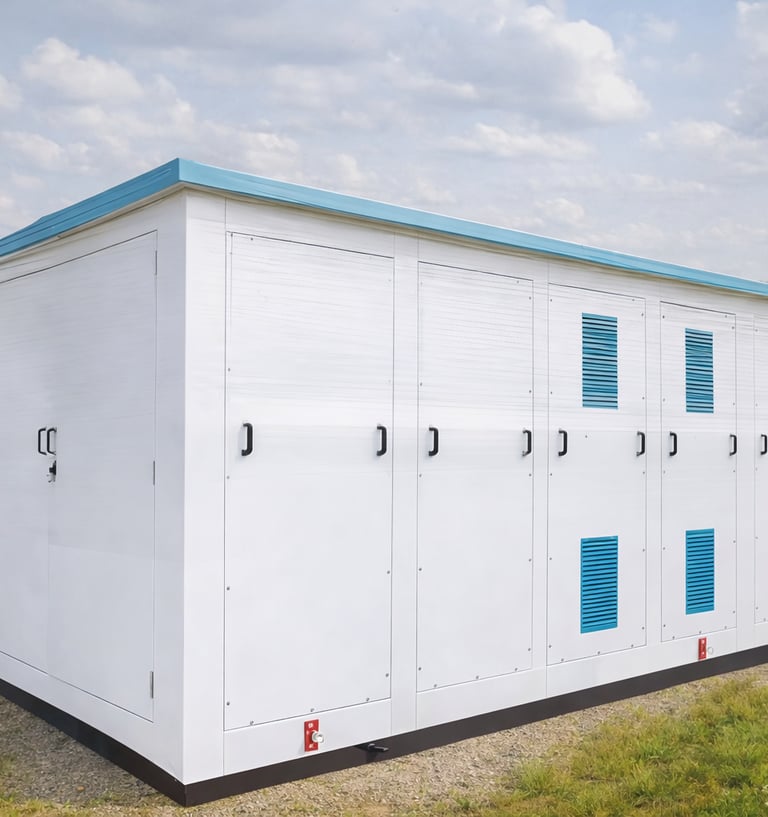

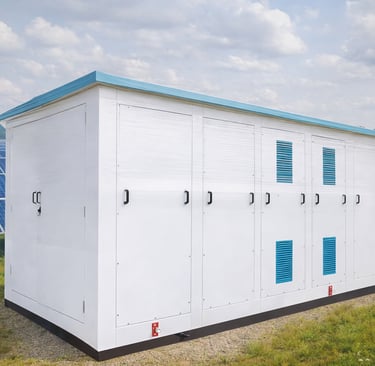

Compact Secondary Substations (CSS)

Factory-assembled outdoor package substations engineered up to 33kV with compartmentalized SF6 or vacuum ring main units, oil-cooled transformers, and low-voltage distribution boards built inside robust weatherproof enclosures.

Switchgear Fabrication

Engineered distribution assemblies

High Tension

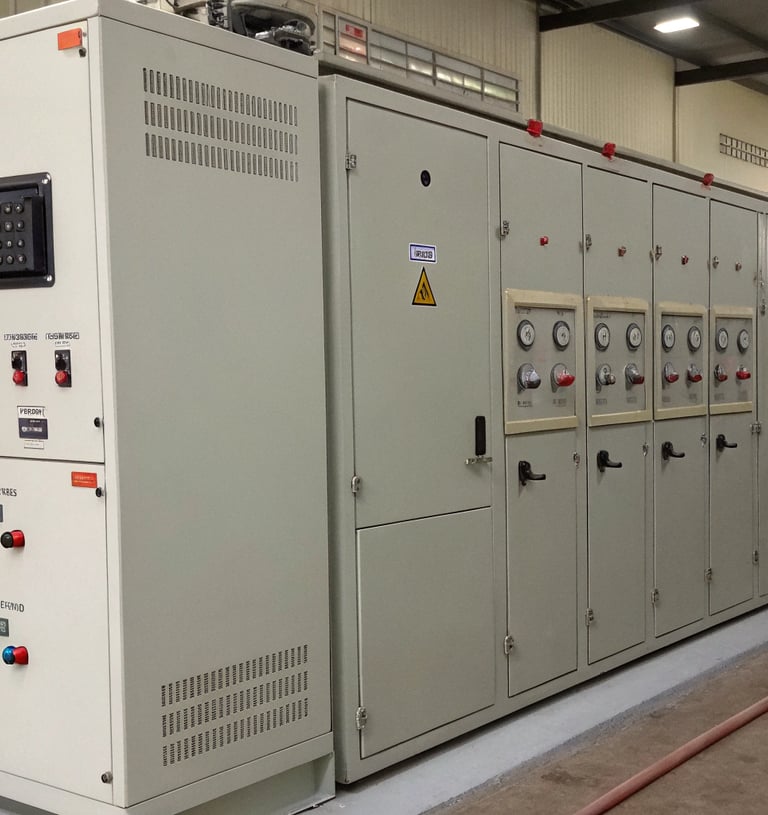

11kV & 33kV HT Panels

Metal-clad indoor vacuum circuit breaker switchboards designed for reliable fault clearing, internal arc containment, and seamless integration with industrial feeder protections.

Low Tension

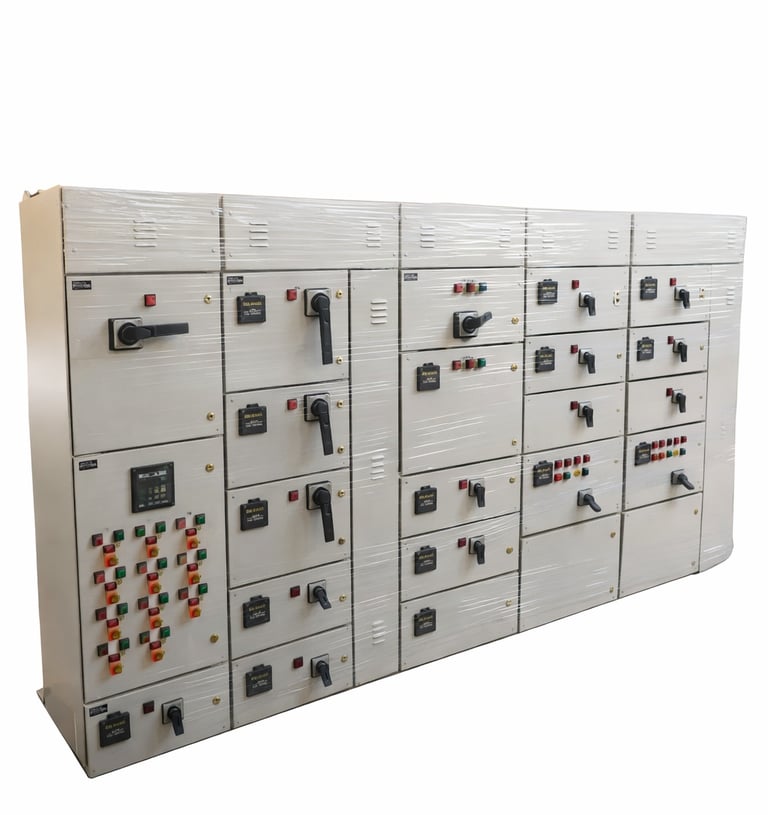

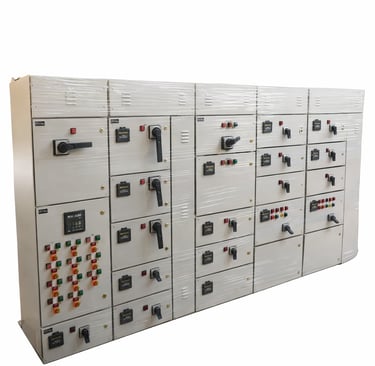

LT Power & Motor Control

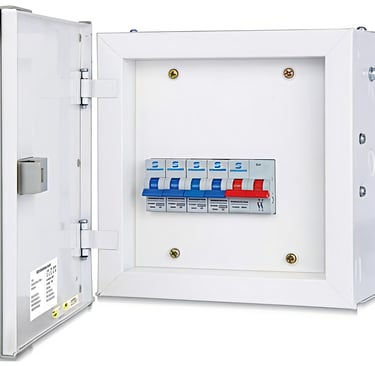

Compartmentalized power distribution boards and motor control centers equipped with high-conductivity copper busbars, typed-tested short-circuit ratings, and modular drawout trays.

Metal Stamping

Architectural conduit hardware

High-volume stamping lines producing deep-drawn galvanized metal enclosures for residential, commercial, and industrial electrical installations across India.

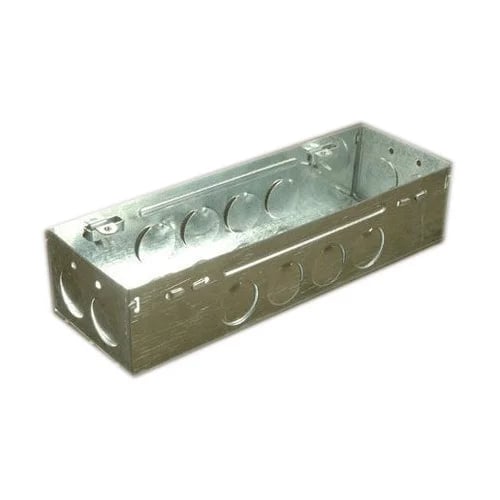

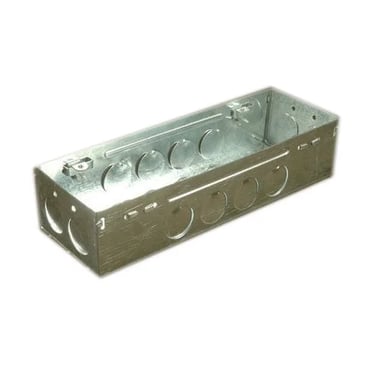

Concealed Boxes

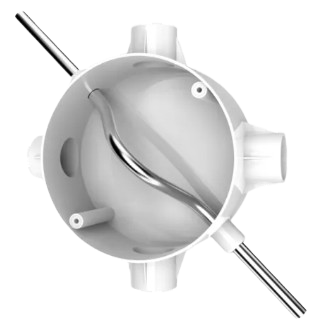

Ceiling Hardware
Power Factor

Modular Wall Enclosures

Heavy Gauge Fan Boxes

APFC Capacitor Panels

Formed from continuous cold-rolled galvanized sheet with uniform knockouts, integrated brass earthing terminals, and precise 1-module to 18-module configurations.

Deep-drawn steel fan hooks rated for heavy dynamic loads, treated with rust-inhibiting zinc plating and standardized conduit entries for rapid slab casting.

Microprocessor-controlled capacitor banks with detuned harmonic filters to maintain stable unity power factor under rapidly fluctuating inductive motor loads.

Tender drawings & test sheets

Submit single-line diagrams or required ratings for prompt factory quotation and standard compliance data sheets.
